鲁顺铭这款HDMI双向分路器,3x1 HDMI Bi-Directional Switch手动设备,它可以很容易地把三路高清信号源自由地切换到一台高清显示器或者投影机上。另外,它还可以将一路信号源分配到三台高清显示器或者投影机上,是HDMI分配器与切换器的组合体,

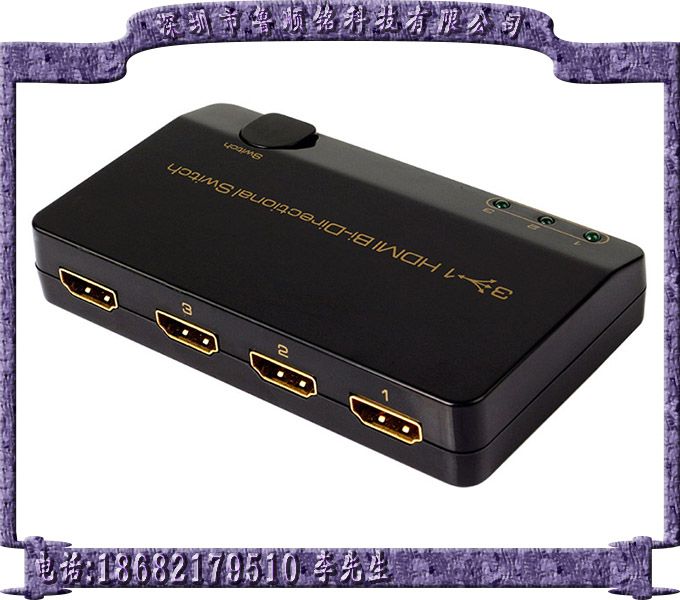

This is one device of HDMI 3 ports bi-direction manual switcher. It can easily switch three routes of HD Source to any one HD display or projector. Also it can distribute one HD Source to three HD Display or projector.
HDMI高清双向分路器
1 信号源 =>3* 显示设备
1显示设备 <=3* 信号源
产品特点及规格:
1.3个HDMI信号源(DVD播放机,PS3或电脑),1个HDMI显示设备或电视
2.1个HDMI信号源(DVD播放机,PS3或电脑),3个HDMI显示设备或电视
3.无需外接电源
4.最大工作电流:50mA
5.完全符合HDMI规格V1.0, V1.1 ,V1.2, V1.3, V1.4
6. 输入输出可以通过按键进行切换
7.工作端口3个LED指示灯显示
8.4个HDMI连接口
9.LED:工作时相对应的指示灯亮
10.安装方便操作简单
11.支持3D,4K
12.使用AWG28 HDMI标准线缆,输入传输距离可达5米,输出传输距离可达5米
13.即插即用
14.安装简易
15.尺寸:106*60.7*18.8 mm(长,宽,高)
16.重量:80g
Features & Specification
1. 3 HDMI-Host (DVD Player or PS3 or computer) to 1 HDMI Monitor or TV
2. 1 HDMI-Host (DVD Player or PS3 or computer) to 3 HDMI Monitor or TV
3. Power free
4. MAX operation current:50mA
5. Full compliance with the HDMI Specification V1.0,V1.1,V1.2,V1.3,V1.4
6. Input or Output can be switcher by button
7. With 3 LED & display working port
8. 4 HDMI A/F connectors
9. LED : 3 (Blue),Display working port
10. Easy install & operation
11. Support 3D,4K
12. Support input up to 5metres AWG28 HDMI standard cable length, output up to 5metres AWG28 cable length
13. Plug & Play
14. Installs I minutes
15. Dimensions:106*60.7*18.8 mm (L,W, H)
16. Weight:80g
HDMI双向分路器,3x1 HDMI Bi-Directional Switch,切换分配器组合体详细资料请来电咨询
